Cloudflare Worker 反向代理尝试

发表于 分类于

前言

由于友链页面有使用图片的要求，同时为其他人的站点提供相关的图片资源（虽然使用现成的 GitHub Page 就可以基本实现，但是 Page 所在的仓库是公开的），尝试通过 GitHub 作为图床解决这个问题。然而，访问速度和稳定性都无法得到保证，为此通过网上搜索学习了一下反向代理 (Reverse Proxy) 的相关知识。

什么事反向代理

在这之前，先来看看什么是正向代理 1 (Forward Proxy)：

客户端通过代理服务器去请求服务器的资源。

Two computers connected via a proxy server. The first computer says to the proxy server: "ask the second computer what the time is".

使用正向代理需要客户端进行一些设置，即配置代理服务器。

而反向代理 2 是指代理服务器向服务器转交请求，并返回内容给客户端，客户端将其认为是原始服务器。

A proxy server connecting the Internet to an internal network.

搭建反向代理服务

创建图床仓库

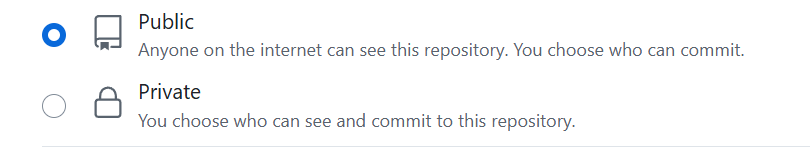

在 GitHub 中创建一个仓库，可以选择是否是私密的。

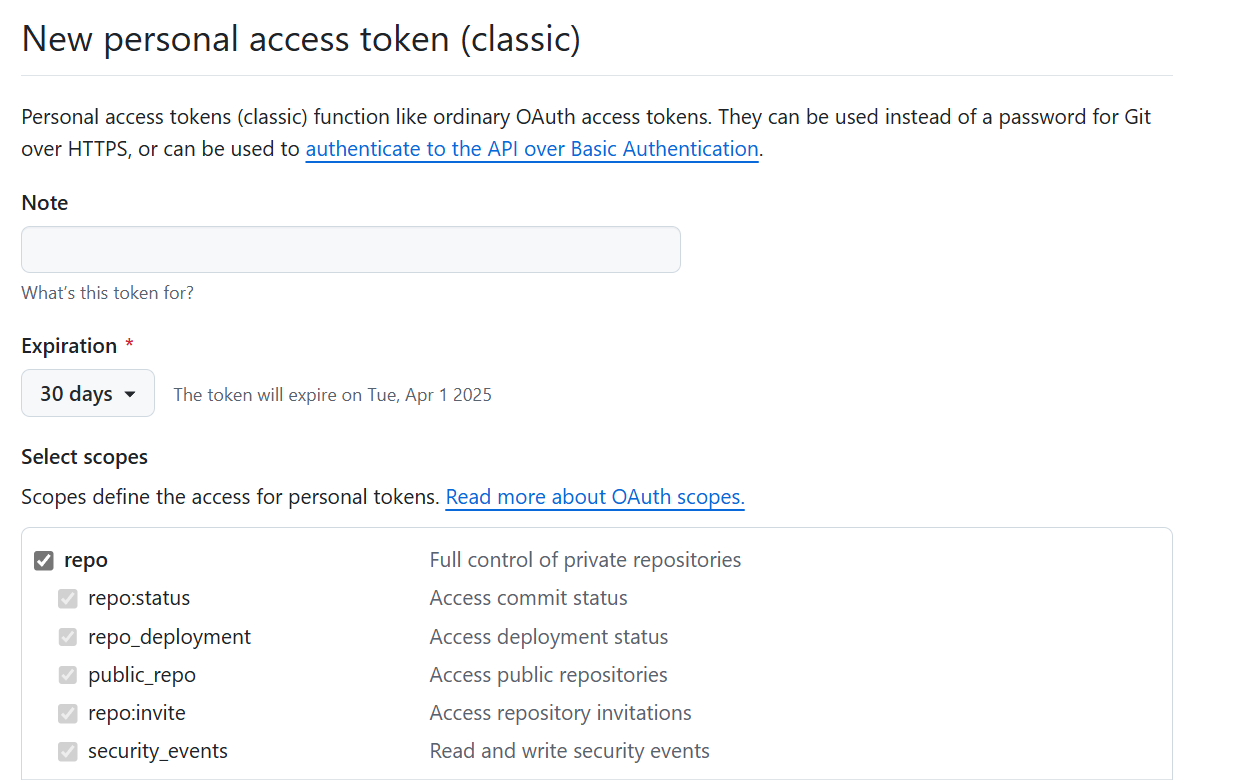

在 Personal Access Tokens (Classic) 处创建一个新的 token，勾选 repo 下所有权限。

过期时间我偷懒选了永不过期，不过这样肯定会导致安全性降低的。生成 token 后放在安全的地方，刷新后就看不见了。

配置 Worker

Cloudflare Workers 提供了这样的服务，但是免费使用具有一定的请求限制。在仪表板中添加一个 Worker，这里命名为 assets。使用的代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
const upstream = "raw.githubusercontent.com";

// Custom pathname for the upstream website.
// (1) 填写代理的路径，格式为 /<用户>/<仓库名>/<分支>
const upstream_path = "/avasummer/assets/main";

// github personal access token.
// (2) 填写github令牌
const github_token = "your_tokenhere";

// Website you intended to retrieve for users using mobile devices.
const upstream_mobile = upstream;

// Countries and regions where you wish to suspend your service.
const blocked_region = [];

// IP addresses which you wish to block from using your service.
const blocked_ip_address = ["0.0.0.0", "127.0.0.1"];

// Whether to use HTTPS protocol for upstream address.
const https = true;

// Whether to disable cache.
const disable_cache = false;

// Replace texts.
const replace_dict = {
  $upstream: "$custom_domain",
};

addEventListener("fetch", (event) => {
  event.respondWith(fetchAndApply(event.request));
});

async function fetchAndApply(request) {
  const region = request.headers.get("cf-ipcountry")?.toUpperCase();
  const ip_address = request.headers.get("cf-connecting-ip");
  const user_agent = request.headers.get("user-agent");

  let response = null;
  let url = new URL(request.url);
  let url_hostname = url.hostname;

  if (https == true) {
    url.protocol = "https:";
  } else {
    url.protocol = "http:";
  }

  if (await device_status(user_agent)) {
    var upstream_domain = upstream;
  } else {
    var upstream_domain = upstream_mobile;
  }

  url.host = upstream_domain;
  if (url.pathname == "/") {
    url.pathname = upstream_path;
  } else {
    url.pathname = upstream_path + url.pathname;
  }

  if (blocked_region.includes(region)) {
    response = new Response(
      "Access denied: WorkersProxy is not available in your region yet.",
      {
        status: 403,
      }
    );
  } else if (blocked_ip_address.includes(ip_address)) {
    response = new Response(
      "Access denied: Your IP address is blocked by WorkersProxy.",
      {
        status: 403,
      }
    );
  } else {
    let method = request.method;
    let request_headers = request.headers;
    let new_request_headers = new Headers(request_headers);

    new_request_headers.set("Host", upstream_domain);
    new_request_headers.set("Referer", url.protocol + "//" + url_hostname);
    new_request_headers.set("Authorization", "token " + github_token);

    let original_response = await fetch(url.href, {
      method: method,
      headers: new_request_headers,
      body: request.body,
    });

    connection_upgrade = new_request_headers.get("Upgrade");
    if (connection_upgrade && connection_upgrade.toLowerCase() == "websocket") {
      return original_response;
    }

    let original_response_clone = original_response.clone();
    let original_text = null;
    let response_headers = original_response.headers;
    let new_response_headers = new Headers(response_headers);
    let status = original_response.status;

    if (disable_cache) {
      new_response_headers.set("Cache-Control", "no-store");
    } else {
      new_response_headers.set("Cache-Control", "max-age=43200000");
    }

    new_response_headers.set("access-control-allow-origin", "*");
    new_response_headers.set("access-control-allow-credentials", true);
    new_response_headers.delete("content-security-policy");
    new_response_headers.delete("content-security-policy-report-only");
    new_response_headers.delete("clear-site-data");

    if (new_response_headers.get("x-pjax-url")) {
      new_response_headers.set(
        "x-pjax-url",
        response_headers
          .get("x-pjax-url")
          .replace("//" + upstream_domain, "//" + url_hostname)
      );
    }

    const content_type = new_response_headers.get("content-type");
    if (
      content_type != null &&
      content_type.includes("text/html") &&
      content_type.includes("UTF-8")
    ) {
      original_text = await replace_response_text(
        original_response_clone,
        upstream_domain,
        url_hostname
      );
    } else {
      original_text = original_response_clone.body;
    }

    response = new Response(original_text, {
      status,
      headers: new_response_headers,
    });
  }
  return response;
}

async function replace_response_text(response, upstream_domain, host_name) {
  let text = await response.text();

  var i, j;
  for (i in replace_dict) {
    j = replace_dict[i];
    if (i == "$upstream") {
      i = upstream_domain;
    } else if (i == "$custom_domain") {
      i = host_name;
    }

    if (j == "$upstream") {
      j = upstream_domain;
    } else if (j == "$custom_domain") {
      j = host_name;
    }

    let re = new RegExp(i, "g");
    text = text.replace(re, j);
  }
  return text;
}

async function device_status(user_agent_info) {
  var agents = [
    "Android",
    "iPhone",
    "SymbianOS",
    "Windows Phone",
    "iPad",
    "iPod",
  ];
  var flag = true;
  for (var v = 0; v < agents.length; v++) {
    if (user_agent_info.indexOf(agents[v]) > 0) {
      flag = false;
      break;
    }
  }
  return flag;
}

部署 Worker，然后在设置 - 域和路由中添加自定义域：

现在您的图床应该可以正常访问了。

helloworld.jpg (300×384): https://assets.summ2.link/helloworld.jpg

小彩蛋

众所周知，似乎在 2020 年前后，Pixiv 就无法被直接访问了。下面借此机会，尝试搭建一个 Pixiv 图床的反向代理服务。由于 i.pximg.net 的盗链保护，得把之前的代码做一些修改。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
// Website you intended to retrieve for users.
const upstream = "i.pximg.net";

// Website you intended to retrieve for users using mobile devices.
const upstream_mobile = upstream;

// Countries and regions where you wish to suspend your service.
const blocked_region = [];

// IP addresses which you wish to block from using your service.
const blocked_ip_address = ["0.0.0.0", "127.0.0.1"];

// Whether to use HTTPS protocol for upstream address.
const https = true;

// Whether to disable cache.
const disable_cache = false;

// Replace texts.
const replace_dict = {
  $upstream: "$custom_domain",
};

addEventListener("fetch", (event) => {
  event.respondWith(fetchAndApply(event.request));
});

async function fetchAndApply(request) {
  const region = request.headers.get("cf-ipcountry")?.toUpperCase();
  const ip_address = request.headers.get("cf-connecting-ip");
  const user_agent = request.headers.get("user-agent");

  let response = null;
  let url = new URL(request.url);
  let url_hostname = url.hostname;

  if (https == true) {
    url.protocol = "https:";
  } else {
    url.protocol = "http:";
  }

  if (await device_status(user_agent)) {
    var upstream_domain = upstream;
  } else {
    var upstream_domain = upstream_mobile;
  }

  url.host = upstream_domain;
/*  if (url.pathname == "/") {
    url.pathname = upstream_path;
  } else {
    url.pathname = upstream_path + url.pathname;
  }*/

  if (blocked_region.includes(region)) {
    response = new Response(
      "Access denied: WorkersProxy is not available in your region yet.",
      {
        status: 403,
      }
    );
  } else if (blocked_ip_address.includes(ip_address)) {
    response = new Response(
      "Access denied: Your IP address is blocked by WorkersProxy.",
      {
        status: 403,
      }
    );
  } else {
    let method = request.method;
    let request_headers = request.headers;
    let new_request_headers = new Headers(request_headers);

    new_request_headers.set('Referer', 'https://www.pixiv.net/');

    let original_response = await fetch(url.href, {
      method: method,
      headers: new_request_headers,
      body: request.body,
    });

    connection_upgrade = new_request_headers.get("Upgrade");
    if (connection_upgrade && connection_upgrade.toLowerCase() == "websocket") {
      return original_response;
    }

    let original_response_clone = original_response.clone();
    let original_text = null;
    let response_headers = original_response.headers;
    let new_response_headers = new Headers(response_headers);
    let status = original_response.status;

    if (disable_cache) {
      new_response_headers.set("Cache-Control", "no-store");
    } else {
      new_response_headers.set("Cache-Control", "max-age=43200000");
    }

    new_response_headers.set("access-control-allow-origin", "*");
    new_response_headers.set("access-control-allow-credentials", true);
    new_response_headers.delete("content-security-policy");
    new_response_headers.delete("content-security-policy-report-only");
    new_response_headers.delete("clear-site-data");

    if (new_response_headers.get("x-pjax-url")) {
      new_response_headers.set(
        "x-pjax-url",
        response_headers
          .get("x-pjax-url")
          .replace("//" + upstream_domain, "//" + url_hostname)
      );
    }

    const content_type = new_response_headers.get("content-type");
    if (
      content_type != null &&
      content_type.includes("text/html") &&
      content_type.includes("UTF-8")
    ) {
      original_text = await replace_response_text(
        original_response_clone,
        upstream_domain,
        url_hostname
      );
    } else {
      original_text = original_response_clone.body;
    }

    response = new Response(original_text, {
      status,
      headers: new_response_headers,
    });
  }
  return response;
}

async function replace_response_text(response, upstream_domain, host_name) {
  let text = await response.text();

  var i, j;
  for (i in replace_dict) {
    j = replace_dict[i];
    if (i == "$upstream") {
      i = upstream_domain;
    } else if (i == "$custom_domain") {
      i = host_name;
    }

    if (j == "$upstream") {
      j = upstream_domain;
    } else if (j == "$custom_domain") {
      j = host_name;
    }

    let re = new RegExp(i, "g");
    text = text.replace(re, j);
  }
  return text;
}

async function device_status(user_agent_info) {
  var agents = [
    "Android",
    "iPhone",
    "SymbianOS",
    "Windows Phone",
    "iPad",
    "iPod",
  ];
  var flag = true;
  for (var v = 0; v < agents.length; v++) {
    if (user_agent_info.indexOf(agents[v]) > 0) {
      flag = false;
      break;
    }
  }
  return flag;
}

事实上实现基本的反代功能，只需要如下代码：

1
2
3
4
5
6
7
8
9
10
11
export default {
  async fetch(request) {
    const url = new URL(request.url);
    url.hostname = 'i.pximg.net';

    const proxyRequest = new Request(url, request);
    proxyRequest.headers.set('Referer', 'https://www.pixiv.net/');

    return fetch(proxyRequest);
  },
};

部署在 pixiv.summ2.link 上，它可以成功配置在 PixEz（一个 Pixiv 第三方客户端）中。

Example:

https://pixiv.summ2.link/img-original/img/2023/11/20/18/53/42/113565191_p0.jpg

参考

  1. https://en.wikipedia.org/wiki/Proxy_server↩︎

  2. https://en.wikipedia.org/wiki/Reverse_proxy↩︎
